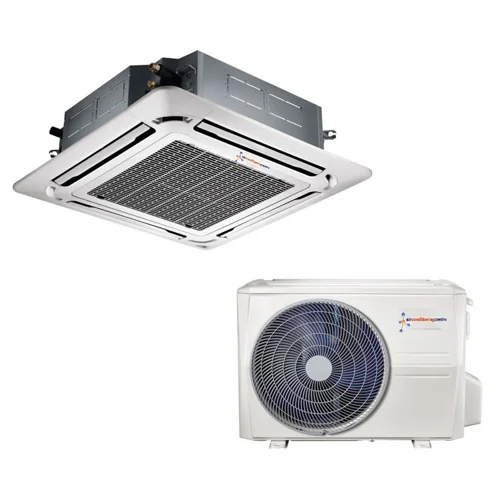

The Air Conditioning Centre super inverter ceiling cassette air conditioner is an efficient and versatile climate control solution suitable for residential and commercial spaces up to 100m2. With its sleek, modern design and dependable performance, this air conditioner delivers the ideal balance of style, functionality and value.
At the core of this air conditioning unit lies its robust cooling and heating capabilities. It boasts an impressive 10.5kW of cooling power alongside 11kW of heating power courtesy of its integrated heat pump system. This enables the unit to maintain comfortable temperatures between 17 °C and 30°C throughout the year. The three-speed fan can generate a maximum airflow of 1,775m3/hr for rapid cooling when needed, or run quietly at lower speeds for minimal noise disruption.
This ceiling cassette air conditioner has various features that allow you to customise operation based on your needs and preferences. The multifunction remote control provides convenient access to modes, fan speeds, temperature and timer settings from across the room. The 24-hour on/off timer further enhances efficiency by letting you schedule operating times in advance. Moreover, the auto-restart function ensures uninterrupted performance even after power outages.
In terms of design, the unit incorporates a crisp, modern aesthetic with its sleek white casing. The oscillating louvres evenly circulate air, while the easy-to-read digital display allows you to monitor settings with ease. For indoor air quality, the unit utilises air purifying filters as well as an anti-mould coating on vital components. Installation is simplified through the inclusion of 6m interconnecting pipes. Overall, this ceiling cassette air conditioner delivers the perfect balance of power, efficiency, convenience and aesthetics.
Dimensions:
Indoor Unit:
Dimension (WxDxH) (body) (mm) 840x840x245
Packing (WxDxH) (body) (mm) 900x900x265
Dimension (WxDxH) (panel) (mm) 950x950x55
Packing (WxDxH) (panel) (mm) 1035x1035x90
Net/Gross weight (body) (kg) 27.5/31
Net/Gross weight (panel) (kg) 5/8
Outdoor Unit:
Dimension (WxDxH) (mm) 946x410x810
Packing (WxDxH) (mm) 1090x500x865
Net/Gross weight (kg) 66.8/73.4
Tech Specs:
Nominal Cooling Capacity (min-max) (kW): 10.5 (2.93-12.02)
Nominal Heating Capacity (min-max) (kW): 11 (2.64-13.19)
Total Cooling Capacity (kW): 11.39
Seasonal Efficiency SEER/Class (W/W): 6.1/A++
Seasonal Efficiency SCOP/Class (W/W): 4/A+
Power supply (Indoor) (V-Ph-Hz): 220~240-1-50
Power supply (Outdoor) (V-Ph-Hz): 220~240-1-50
Cooling Current (min-max) (A): 7.2 (1.7-8.2)
Heating Current (min-max) (A): 5.3 (1.2-8.3)
Max.Current (A): 10
Indoor air flow (Hi/Mi/Lo) (m³/h): 1,775/1,620/1,438
Indoor sound pressure level (Hi/Mi/Lo) (dB(A)): 47/45/42
Outdoor sound pressure level (dB(A)): 56
Pipe side: 3/8″ & 5/8″
Refrigerant piping – Max. pipe length (m): 65
Refrigerant piping – Max. height difference (m): 30
Operating temperature – Indoor (Cooling/Heating) (°C): 17~32/0~34
Operating temperature – Outdoor (Cooling/Heating) (°C): -15~50/-15~28
Connecting Pipe Length (m): 6
Selectable Temp Range (ºC): 17-30
Minimum Operating Temp (Cooling/Heating) (ºC): -10 / -15
Automatic Restart after Power Failure: Yes
Automatic Refrigerant Leak Detection & Self Diagnosis Systems: Yes
Warranty: 5 Years (Must be installed by F-Gas registered installer, systems must be serviced by F-GAS registered installer and warranty & services must be registered with Air Conditioning Centre).
