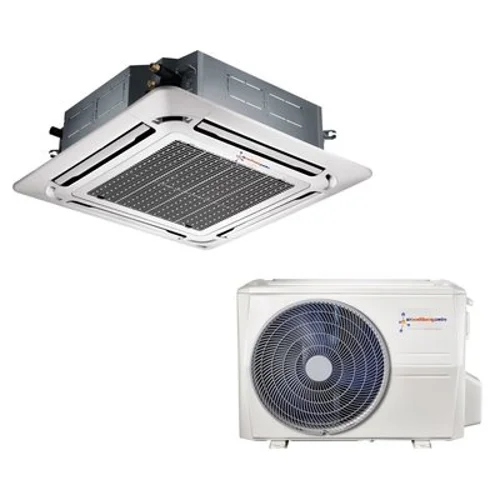

This Air Conditioning Centre super inverter ceiling cassette air conditioner is an effective heating and cooling solution for residential and commercial spaces up to 60m2. This wall-mounted split system comprises a stylish indoor unit and a compact outdoor condenser connected by 6m piping.
With 7kW of cooling capacity, this cassette air conditioner delivers impressive temperature control to maintain comfort during hot summer weather. The built-in heat pump provides substantial 7.6kW heating power for consistent warmth in colder months. The unit can effectively regulate the climate in homes, offices and retail spaces year-round.
This air con unit features a range of 17-30°C for the thermostat temperature setting. It automatically maintains the desired temperature by switching on and off as needed. The maximum airflow is 1378m3/hour across three adjustable fan speeds, enabling rapid cooling or quiet operation.
The unit offers user-friendly controls for efficient operation. The included remote control allows easy setting adjustment. The timer function enables fully automated on/off scheduling for convenience and energy savings.
This super inverter air conditioner provides high-efficiency filtration to remove dust, odours and particles from the air. The anti-mould coating also inhibits contaminant build-up for fresher indoor air quality. The digital display clearly shows the user-selected temperature and operating modes.
Additional features include oscillating louvres to circulate air evenly throughout the room, auto-restart after power cuts, and a stylish white finish. Installation by an accredited F-Gas technician is essential to maintain the 5-year warranty and service coverage.
Dimensions:
Indoor Unit:
Dimension (WxDxH) (body) (mm) 840x840x245
Packing (WxDxH) (body) (mm) 900x900x225
Dimension (WxDxH) (panel) (mm) 950x950x55
Packing (WxDxH) (panel) (mm) 1035x1035x90
Net/Gross weight (body) (kg) 23/27
Net/Gross weight (panel) (kg) 5/8
Outdoor Unit:
Dimension (WxDxH) (mm) 845x363x702
Packing (WxDxH) (mm) 965x395x765
Net/Gross weight (kg) 66.8/72.6
Tech Specs:
Nominal Cooling Capacity (min-max) (kW) 7 (2.23-8.21)
Nominal Heating Capacity (min-max) (kW) 7.6 (2.43-8.65)
Total Cooling Capacity (kW) 7.78
Seasonal Efficiency SEER/Class (W/W) 6.1/A++
Seasonal Efficiency SCOP/Class (W/W) 4/A+
Power supply (Indoor) (V-Ph-Hz) 220~240-1-50
Power supply (Outdoor) (V-Ph-Hz) 220~240-1-50
Cooling Current (min-max) (A) 9.5 (2.1-12.4)
Heating Current (min-max) (A) 8.9 (2.2-12.5)
Max.Current (A) 13.5
Indoor air flow (Hi/Mi/Lo) (m³/hr) 1378/1200/1032
Indoor sound pressure level (Hi/Mi/Lo) (dB(A)) 41/38/35
Outdoor sound pressure level (dB(A)) 55
Pipe side: 3/8″ & 5/8″
Refrigerant piping – Max. pipe length (m) 50
Refrigerant piping – Max. height difference (m) 25
Operating temperature – Indoor (Cooling/Heating) (°C) 17~32/0~33
Operating temperature – Outdoor (Cooling/Heating) (°C) -15~50/-15~27
Connecting Pipe Length (m): 6
Selectable Temp Range (ºC): 17-30
Minimum Operating Temp (Cooling/Heating) (ºC): -7 / -15
Automatic Restart after Power Failure: Yes
Automatic Refrigerant Leak Detection & Self Diagnosis Systems: Yes
Warranty: 5 Years (Must be installed by F-Gas registered installer, systems must be serviced by F-GAS registered installer and warranty & services must be registered with Air Conditioning Centre).
