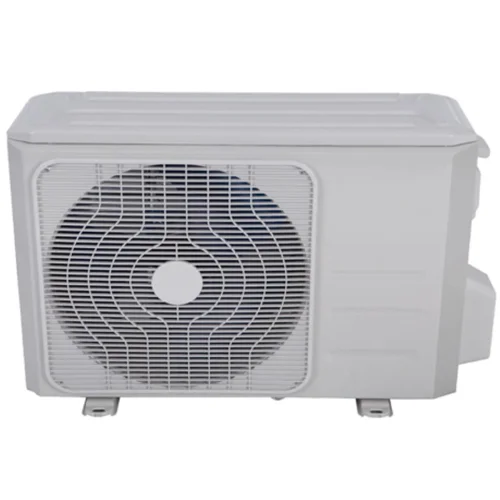

The Air Conditioning Centre 5-head outdoor unit is a powerful, versatile, outdoor condenser unit designed to provide reliable, energy-efficient climate control for various spaces when paired with compatible indoor air conditioning units. With a total capacity of 12.5kW and designed for use with up to 5 indoor units, this outdoor condenser unit offers the flexibility to customise an air conditioning system to suit your needs.
With a substantial cooling capacity of 43,000 BTU (12.5kW), the unit can easily handle the demands of cooling multiple rooms in a home or office building. The 5-head design enables connecting up to 5 indoor units, allowing you to precisely control the temperature in different zones based on usage and occupancy. This makes the system highly efficient, as you only need to cool the required spaces. Even at max capacity, the outdoor unit maintains a low noise level of just 65dB(A) for unobtrusive operation.
Several advanced features contribute to the outstanding performance and capabilities of this condenser unit. The modern R410A refrigerant is highly eco-friendly and promotes powerful cooling and heating. Auto restart automatically resumes operation after power outages to maintain comfort and convenience. The two-pipe simplified installation enables a faster, more affordable setup. With a compact and slim weatherproof casing, the outdoor unit is designed for longevity while having a small footprint. Automatic refrigerant leak detection and self-diagnosis further enhance reliability and ease of maintenance.
With its robust cooling capacity, energy-efficient 5-head design, and range of advanced features, this outdoor condenser unit provides an ideal solution for whole-home or building air conditioning.
Model No: KMS-5MI0/X1CM
Energy Efficiency Rating Cooling: A++
Energy Efficiency Rating Heating: A+++
Power Rating (Ph-V-Hz): 1 / 220-240V / 50Hz
Capacity BTU Cooling kW (Max kW): 42000 / 12.31 (14)
Capacity BTU Heating kW (Max kW): 43000 / 12.6 (15)
Power Input (W) Cooling/Heating (Max kW): 3820 - 3310 (5)
Current Input (A) Cooling/Heating: 14.6 - 15.3
EER (BTU/hr.w): SEER 5.3
COP (W/W): SCOP 3.4
Dehumidification (L/h): N/A
Indoor Noise Level dB(A) (Hi/M/Lo): N/A
Outdoor Noise Level dB(A): 65
Indoor Airflow (m3/h) (Hi/M/Lo): N/A
Max. Current Rating (A): 22
Net Dimension (mm) indoor (W/D/H): N/A
Net Dimension (mm) outdoor (W/D/H): 946x410x810
Net/Gross Weight (kg) indoor: N/A
Net/Gross Weight (kg) outdoor: 76
Max Room Size (m2): N/A
Max Conservatory Size (m2): N/A
Connecting Pipe Length (m): N/A
Pipe Diameter Liquid/Gas (Inch): 3 Sets of 1/4 & 3/8, 2 Sets of 1/4 & 1/2
Selectable Temp Range ºC: N/A
Minimum Operating Temp (Cooling/Heating) ºC: -15
Automatic Restart after Power Failure: Yes
Automatic Refrigerant Leak Detection & Self Diagnosis Systems: Yes
Warranty: 5 Years (Must be installed by F-Gas registered installer, systems must be serviced by F-GAS registered installer and warranty & services must be registered with Air Conditioning Centre).
