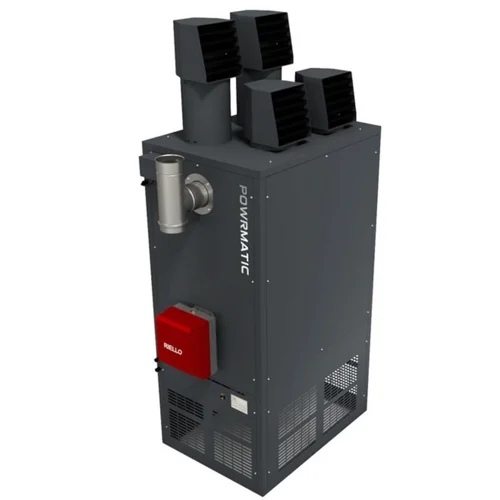

The Powrmatic CPx175 is a 175kW oil-fired heater made for heating large industrial spaces like factories, warehouses, and workshops. Its space-saving design makes installation easy, and its strong outer shell and high-quality parts guarantee lasting and dependable heating.
The CPx175 provides heat distribution with its powerful airflow of 12,150 m³/h and a heat throw of up to 29m, making it effective in large spaces. The heater features four adjustable air distribution heads with variable louvres for added precision. An optional ducted air outlet can be added, providing even more flexibility.
The CPx175 supports diesel and kerosene, allowing you to choose your fuel. This unit complies with the latest ErP standards for lower NOx emissions and enhanced seasonal efficiency, helping to reduce its environmental impact. The Powrmatic MC200 controller offers next-generation digital control, including password protection, programmable timers, and temperature-dependent start/stop functionality. These features optimise fuel usage, reduce costs, and are user-friendly.
The CPx175 is designed with safety in mind and features a Riello Gulliver high-low burner for safe combustion. The unit has a 90° flue tee and flue gas analysis sample point, making exhaust management safe and easy. The heater requires a 175mm diameter flue system, which should be installed vertically with minimal bends to maintain optimal performance. Proper installation means exhaust fumes are safely vented away from working areas.
Model: CPx175
Output: 175kW
Input (nett CV) 35sec oil: 194.9kW
Old Powrmatic Reference: CP600
Thermal Efficiencies (Nett CV): Min 91.5%
NOx Seasonal (Gross): 65.5 mg/kWh
Seasonal Space Heating Efficiency (% hs,h): 72.9%
Airflow: 3.36 m³/s (12,096 m³/h)
Adjustable Heads: 4
Head Size: 358 mm
Air Throw: 29m
Pressure (Standard Fan): 290Pa
Power Supply: 400v / 3ph / 50Hz
Motor Power: 4kW
Run: 8 amp
Start: 23 amp
Connection (Oil): 3/8” BSP/Rc
Consumption Standard Outputs: 18.89 l/h
Overall Dimensions H x W x D (excluding burner): 3054 x 904 x 1399 mm
Installation Clearances (Front / Side / Blank Side / Rear): 1000 / 1000 / 150 / 1000 mm
Flue Diameter: 175mm
Combustion Air Spigot Diameter: 150mm
Noise Level: 73 dB(A)
Nett Weight: 530kg
(Noise levels are applicable to standard models and are measured 5m from appliance and in free field conditions.)
Guarantees:
Powrmatic CPx heaters are provided with a comprehensive guarantee covering both the heater and the heat exchanger. For United Kingdom sales the heater has the benefit of a two year parts and one year labour guarantee whilst the heat exchanger assembly has a ten year time related warranty. All guarantees are subject to terms and conditions
