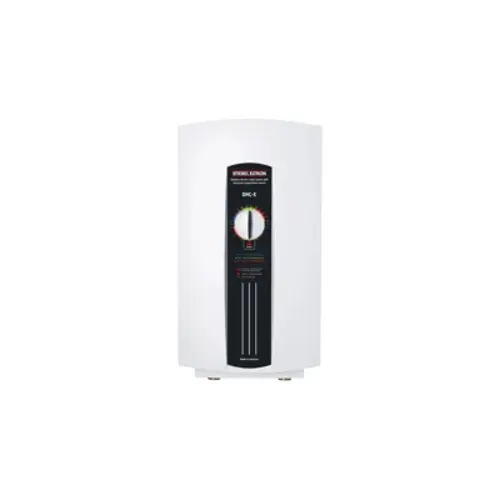

The Stiebel Eltron DHC-E Set's compact, efficient design brings instantaneous hot water to homes and small commercial spaces. Offering a range of 7.2kW to 12kW, this unit delivers between 24,567 and 40,945 BTU of heating power, ensuring a consistent hot water supply even under challenging conditions.
One of the standout features of this water heater is its ability to function effectively even with low water pressure. This adaptability makes the DHC-E Set an ideal solution for areas with inconsistent water supply or older plumbing systems, ensuring reliable hot water delivery where other units might falter.
Stiebel Eltron has incorporated electronic closed-loop control into the compact water heater, a feature that continuously monitors and adjusts the water temperature, guaranteeing accurate temperature delivery. Users can fine-tune their preferred water temperature via a stepless rotary selector, providing a personalised experience with maximum energy efficiency.
This instantaneous water heater's reliable tubular heater system is engineered for an extended service life, promising years of dependable operation. Safety is paramount, with a high-limit safety cut-out feature that automatically shuts off the unit if it detects overheating, offering peace of mind during use. These elements combine to create a trustworthy appliance for daily hot water needs.
With its slimline profile and surface mount design, the DHC-E Set integrates seamlessly into various spaces. The unit's metal water connections facilitate straightforward installation, making it an attractive option for both new builds and retrofits where space may be at a premium.
Product Number: 236447
Rated voltage: 240 V
Rated voltage 1: 208 V
Rated voltage 2: 220 V
Rated voltage 3: 230 V
Rated voltage 4: 240 V
Rated output: 7,2/9,6 kW
Rated output 1: 5,4/7,2 kW
Rated output 2: 6,0/8,1 kW
Rated output 3: 6,6/8,8 kW
Rated output 4: 7.2/9,6 kW
Rated current: 32/40 A
Rated current 1: 28/35 A
Rated current 2: 30/50 A
Rated current 3: 31/39 A
Rated current 4: 32/40 A
Fuse protection: 40/40 A
Fuse protection 1: 30/50 A
Fuse protection 2: 40/50 A
Fuse protection 3: 40/50 A
Fuse protection 4: 40/50 A
Frequency: 50/60 Hz
Phases: 1/N/PE ~220-240 V
IP rating: IP 24
Temperature setting: 30-60 °C
Colour: white
Height: 360 mm
Width: 200 mm
Depth: 110 mm
Weight: 2.70 kg
Energy efficiency class: A
Product Number: 236448
Rated voltage: 208/240 V
Rated voltage 1: 208 V
Rated voltage 2: 220 V
Rated voltage 3: 230 V
Rated voltage 4: 240 V
Rated output: 12 kW
Rated output 1: 9 kW
Rated output 2: 10 kW
Rated output 3: 11 kW
Rated output 4: 12 kW
Rated current: 50 A
Rated current 1: 44 A
Rated current 2: 46 A
Rated current 3: 48 A
Rated current 4: 50 A
Fuse protection: 60 A
Fuse protection 1: 60 A
Fuse protection 2: 60 A
Fuse protection 3: 60 A
Fuse protection 4: 60 A
Frequency: 50/60 Hz
Phases: 1/N/PE ~220-240 V
IP rating: IP 24
Temperature setting: 30-60 °C
Colour: white
Height: 360 mm
Width: 200 mm
Depth: 110 mm
Weight: 2.70 kg
Energy efficiency class: A
