The Dantherm Solutions Large Target Drying Package is an ideal solution for efficient and effective water damage restoration in tight, confined spaces. This package is comprised of high-quality, non-destructive drying equipment, including two energy-efficient HEYLO IRW200 Infrared Heat Panels, two powerful TFV 29 FS radial fan, and the highly efficient Master DHP 20 Condensation Dehumidifier, along with essential accessories. Designed for professional restoration efforts, this package ensures rapid drying and optimal performance in precisely targeted areas.

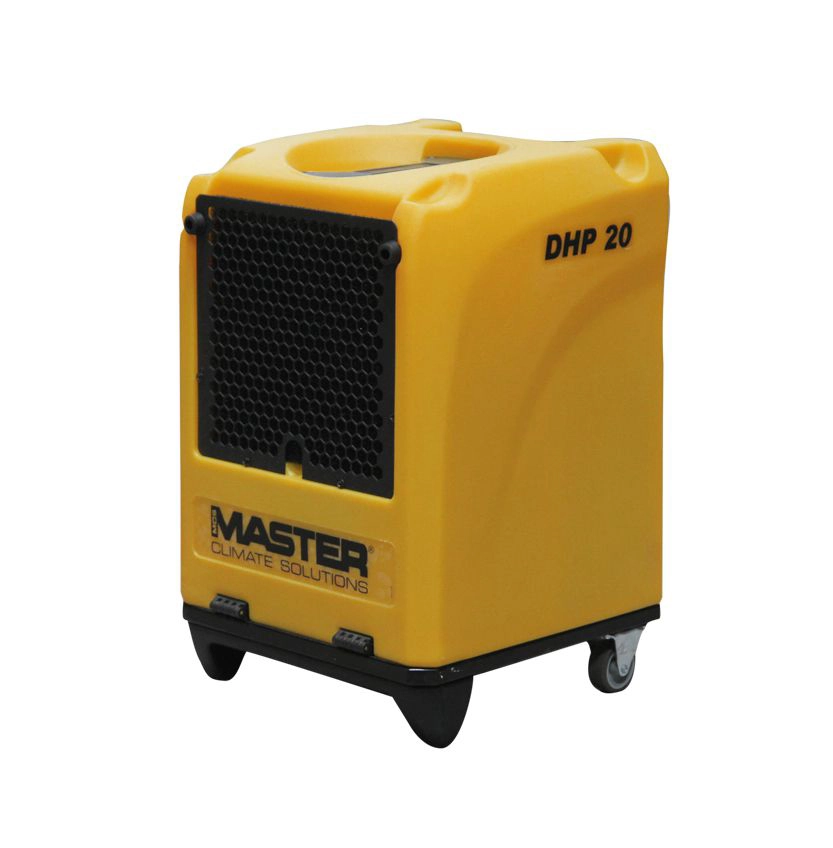

The lightweight and portable Master DHP 20 offers an exceptional drying capacity of 19 litres per day, presenting an ideal fix for preventing condensation, damp, and mould. The onboard water pump effectively accelerates the drying process in small spaces following a leak or flood. Each device delivers an exceptionally efficient and quick drying performance—achieving high dehumidification with impressively low consumption. The Master DHP 20 refrigerant dehumidifier is supplied with a single 100mm air duct connector adaptor and a triple 50mm air duct connector adaptor.
The multifaceted design of this slim turbo fan ensures that it is the ideal space-saving solution for any drying task, with four flexible operating positions and multiple outlets so you can place the ultra-compact fan in any tight space to efficiently accelerate the drying process of walls, ceilings, surfaces or even entire stairwells.

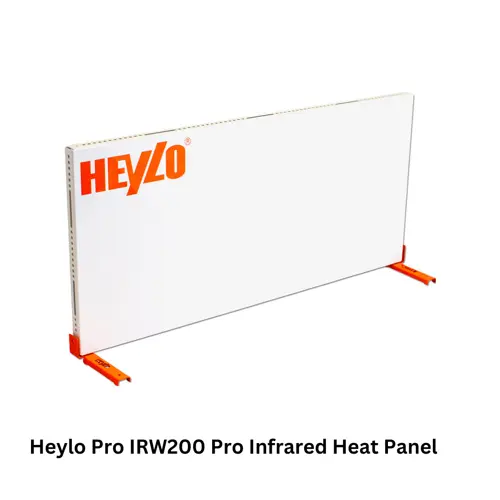

The HEYLO IRW200 Infrared Heat Panel features a slim, compact and portable design, with a low-noise, energy-efficient performance for rapid, convenient and economical drying of walls following leaks and floods - preventing cracking, shrinking and warping. Used in conjunction with the Master DHP 20 dehumidifier and two TFV 29 FS fans included in the package, the HEYLO IRW200 IR heat panels provide a complete drying system to contribute to rapid water damage restoration efforts.
| Capacity | 16 Litres |
|---|---|
| Voltage (V) | 240 |
| Max Room Size (Approximate) | 60 m² |
| Capacity (30°C/80% RH) | 16 Litres Per 24 Hours |
| Air Displacement | 375 m³/hr |
| Operating Range (Temperature) | 5 - 32°C |
| Operating Range (Humidity) | 30 - 90 % |
| Power Consumption (Watts) | 395 |
| Permanent Drain Facility | Yes |
| Built-In Condensate Pump | Yes |
| Refrigerant Gas | R1234YF |
| Continuous Operation | Yes |
| Built In Hydrostat | Yes |
| Automatic Shut Off | Yes |
| Pump Lifting Height | 6 Metres |
| Pump Discharge Length | 7 Metres |
| Tank Full Indicator | Not Applicable |
| Controls | Dial |
| Housing | Rotomoulded |
| Dimensions (L x W x D) | (mm) 360 x 330 x 490 |
| Noise Level (dB(A)) | 53 |
| IP Rating | IPX0 |
| Weight (kg) | 21 |
| Air Flow Rate | Max. 1,150 m³/h |
|---|---|
| Air Current | Blowing out, Sucking in |
| Fan Stages | 1 (Radial and Axial) |
| Air Discharge Velocity | 7 m/s |
| Air Pressure | Max. 290 Pa |
| Transport Medium Temperature | Max. 60 °C |
| Electrical Values | Mains connection: 230 V/50 Hz Nominal current: 0.74 A Power input: 0.17 kW |
| Electric Connection | Plug: CEE 7/7 Cable length: 5 m |
| Safety Feature | IP44 protection |
| Sound Values | 64 dB(A) at 3 m |
| Operating Hours Counter | Integrated |
| Dimensions | 520 mm (L) x 450 mm (W) x 255 mm (H) |
| Weight | 11 kg (packaging excluded) |
| Electric Connection (V / Hz) | 230 / 50 |
|---|---|
| Performance (kW) | 0.22 |
| Power consumption (A) | 0.9 |
| Protection class (IP) | 54 |
| Dimensions (mm) | (H x W x D) 380 x 650 x 45 |
| Weight (kg) | 4.8 |
| Inset | Standing (up / across) |
1 x Master DHP 20 Dehumidifier
1 x 100mm Air Duct Connector Adaptor
1 x 3x50mm Air Duct Connector Adaptor

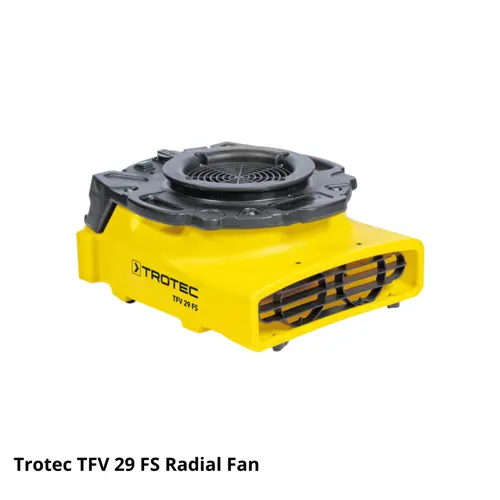

2 x Trotec TFV 29 FS Radial Fan
2 x Heylo Pro IRW200 Infrared Heat Panel
