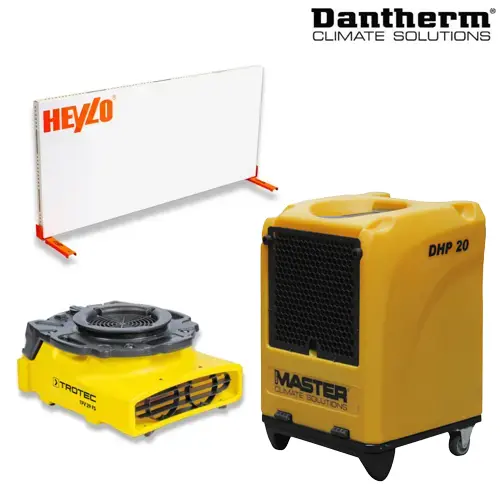

The Dantherm Solutions Small Target Drying Package is an ideal solution for efficient and effective water damage restoration in tight, confined spaces. This package is comprised of high-quality, non-destructive drying equipment, including the powerful Heylo KT 20 Industrial Building Dryer along with essential accessories, the rapid Trotec TFV 29 FS Radial Fan, and the energy-effificent Heylo Pro IRW200 Infrared Heat Panel. Designed for professional restoration efforts, this package ensures rapid drying and optimal performance in small, targeted areas.
The lightweight and portable Heylo KT 20offers an exceptional drying capacity of 20 litres per day, presenting an ideal fix for preventing condensation, damp, and mould. The built-in condensate pump and hose automatically discharges moistrue from the unit, accelerating the drying process in small spaces following a leak or flood. Each device delivers an exceptionally efficient and quick drying performance—achieving high dehumidification with impressively low consumption. The Heylo KT 20 Compressor Dehumidifier is supplied with a single 100mm Air Duct Connector Adaptor and a triple 3x50mm Air Duct Connector Adaptor.

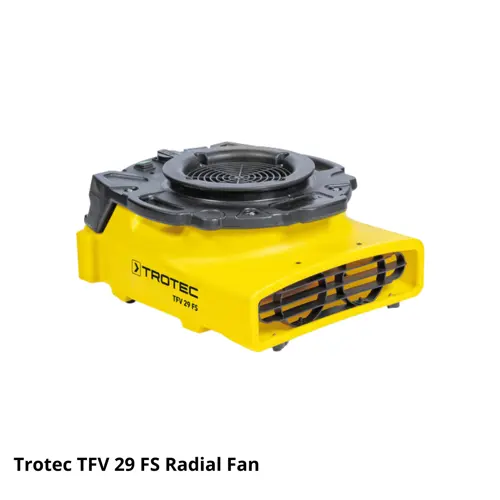

The multifaceted design of this slim turbo fan ensures that it is the ideal space-saving solution for any drying task, with four flexible operating positions and multiple outlets so you can place the ultra-compact fan in any tight space to efficiently accelerate the drying process of walls, ceilings, surfaces or even entire stairwells.

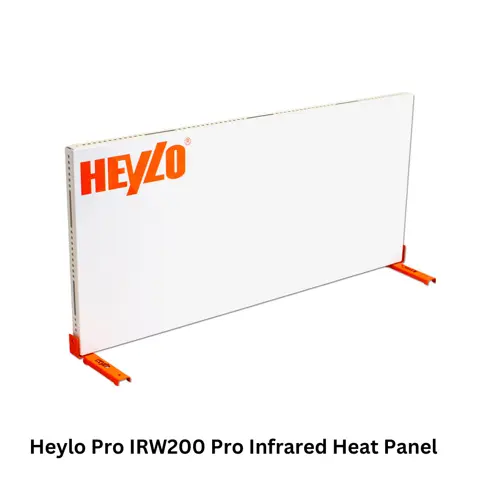

The Heylo Pro IRW200 Infrared Heat Panel features a slim, compact and portable design, with a low-noise, energy-efficient performance for rapid, convenient and economical drying of walls following leaks and floods - preventing cracking, shrinking and warping. Used in conjunction with the Master DHP 20 dehumidifier and TFV 29 FS radial fan included in the package, the Heylo Pro IRW200 IR heat panel provides a complete drying system to contribute to rapid water damage restoration efforts.
| Dehumidification Rate (l / 24h) (30°C / 80 % r.h.) | 20 |
|---|---|
| Dehumidification rate max. (l / 24 h): | 22.4 |
| Air flow rate (m³/h): | 375 |
| Dryer performance surface (sqm) (h= 250 / 20°C / 60 % r.h.): | 60 |
| Electric Connection (V / Hz) | 230 / 50 |
| Max. Power (kW) | 0.38 |
| Power Consumption Max. (A) | 1.3 |
| Energy Meter Integrated (kWh) | Yes (MID) |
| Operating Hours Counter Integrated | Yes |
| Application Temperatures (°C) | 5 - 38 |
| Condensate Feed Pump | Yes |
| Coolant-type | R290 |
| Quantity of Coolant (g) | 130 |
| Type of Compressor | Rotary Piston |
| Evaporator Type | Finned Evaporator |
| Defrosting | Hot Gas Electronic |
| Protection Class (IP) | 44 |
| Noise Volume (dB(A) @ 3m) | 60 |
| Length / Width / Height (mm) | 360 / 330 / 490 |
| Weight (kg) | 20 |
| Air Flow Rate | Max. 1,150 m³/h |
|---|---|
| Air Current | Blowing out, Sucking in |
| Fan Stages | 1 (Radial and Axial) |
| Air Discharge Velocity | 7 m/s |
| Air Pressure | Max. 290 Pa |
| Transport Medium Temperature | Max. 60 °C |
| Electrical Values | Mains connection: 230 V/50 Hz Nominal current: 0.74 A Power input: 0.17 kW |
| Electric Connection | Plug: CEE 7/7 Cable length: 5 m |
| Safety Feature | IP44 protection |
| Sound Values | 64 dB(A) at 3 m |
| Operating Hours Counter | Integrated |
| Dimensions | 520 mm (L) x 450 mm (W) x 255 mm (H) |
| Weight | 11 kg (packaging excluded) |
| Electric Connection (V / Hz) | 230 / 50 |
|---|---|
| Performance (kW) | 0.22 |
| Power consumption (A) | 0.9 |
| Protection class (IP) | 54 |
| Dimensions (mm) | (H x W x D) 380 x 650 x 45 |
| Weight (kg) | 4.8 |
| Inset | Standing (up / across) |
1 x Heylo KT 20 Building Dryer
1 x 100mm Air Duct Connector Adaptor
1 x 3x50mm Air Duct Connector Adaptor
1 x Trotec TFV 29 FS Radial Fan
1 x Heylo Pro IRW200 Infrared Heat Panel
